7 Segment LCD Display TN LCD Display Blue Backlight HT1621 COB Module

Detail Information

Detailed Parameters:

Display Types:

• TN displays are often used for monochrome or RGB (color) displays, depending on the application.
• They are typically seen in segment-based displays (e.g., digital clocks, simple readouts) as well as full-screen displays like computer monitors, TV screens, and smartphone

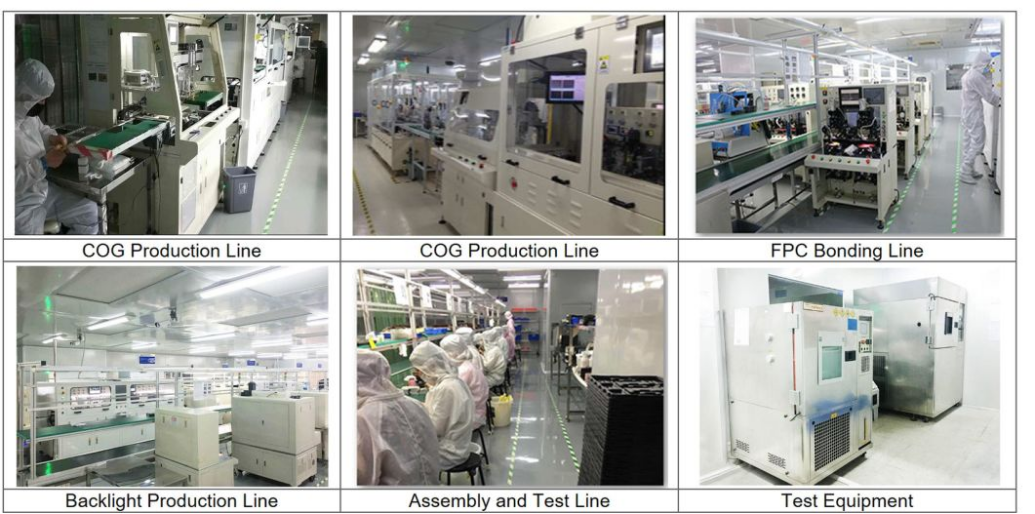

Production Line:

☆ Clean Room class 10k@0.8um, Pressurec 0.8kgf

☆ Antistatic floor, resistance : 1x10 ohm to 1x10 ohm

☆ COG production lines: 4 .

☆ Backlight production lines: 2 .

☆ Existing machine capacity will be 1KK per month.

***In compliance with ISO9001 Quality Management
***One year's guarantee for unartificial damage

1: Small lcd display screen
2: Reasonable price
3: Large capacity
4: Certificate ISO; Rohs, REACH
5: Dimension as customer request
6: STN blue small lcd display screen

DONG GUAN BIBUKE  Electronics Technology  Co., Ltd.

It set up in the year of 2002, is a high-tech enterprise specialized in producing LCD and LCM. Our company has 1500 staffs and more than 30000 square kilometer area, advanced LCD production lines, and a professional team with great strength and rich experience. we can customize all kinds of sizes liquid crystal display (LCD) with glass thickness 1.1mm, 0.7mm,0.55mm,0.4mm and the models of TN, HTN, STN and FSTN LCM with COB, TAB, COG, TFT , LED Backlight.

 In this competitive industry, BIBUKE is known for providing high-quality products. Welcome new and old customers to contact us, we sincerely hope to cooperate with partners, create a better future, achieve win-win!

Products Application field:

Automobiles  Sports Equipment   Watches   Household appliance(air condition/wash machine/electronic cooler/ refrigerator/disinfection cabinet/ wash bowl machine/ calculator /electronic scale etc.)

1. Our standard TFT LCD Display size, and experienced team for Your Custom Solution:
1.44", 1.54", 1.77", 2", 2.2", 2.4", 2.7", 2.8′′, 3.0", 3.2", 3.5", 4", 4.3", 4.5", 5", 5.5", 5.6", 5.7", 7", 8", 9", 10.1", 10.4"
2. Our standard IPS LCD Display size, and experienced team for Your Custom Solution:
1.54", 2.4", 2.8′′, 3.0", 3.5", 4", 4.3", 4.5", 5", 5.5", 7", 8", 9", 10.1", 10.4"
3. Standard touch screen LCD display for all kinds of TFT and IPS LCD display with Resistive and Capacitive touch panel, and can make customized touch screen optical bonding with LCD display
4. High Brightness TFT Display with from 800 CD/m² To1000CD/m² With good performance under sunlight readable (outdoor LCD display).
5. All common TFT Display will O film can be super wide view angle, close to IPS panel & same as MVA glass.
6. Standard TFT and IPS LCD displays option Resistive and Capacitive Touch Panel are applied for Cell phone, Tablet PC, digital and industrial products and so on.
7. Customized and Standard mono Character LCD Module, COB and COG graphic LCD Module with various colors including yellow/green, white, blue, and with various backlight and LCD type combinations.

FAQ:

1.     I want the LCD display 8 digits and the outline size is 65x30x2.8mm………?

If you have not the specification, you can also provide your samples; we will recommend the suitable one

2.This LCD  is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
      Answer: For the segment type LCD module, if you need modify the outline size or display content,

3. This LCD display is HTN type, but I want STN type,can you make?
      Answer: That’s all right .  we can change for you as per you request.

of the LCD display, display information( Glass thickness, Polarizer, Display Type, Connector mode,
Storage Temp. Operating Temp.  Supply Voltage, Viewing direction, drive condition), we can customize for you.

we can report you the exact time when you confirm the drawing paper.

4. I want customize a new LCD module. Can you do?
      Answer: Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size

of the LCD display, display information( Glass thickness, Polarizer, Display Type, Connector mode,
Storage Temp. Operating Temp.  Supply Voltage, Viewing direction, drive condition), we can customize for you.

5. What is leading time for tooling?
      Answer: General speaking, it will cost 15 to 25 days  after drawing paper confirmation and tooling charge payment,

we can report you the exact time when you confirm the drawing paper.

6. Can you send us samples for checking?
     Answer: Yes,. Samples order is available.

7. What is the Leading Time?
    Answer: If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for
