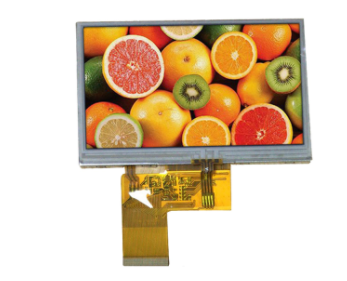

4.3 Inch TFT LCD Display Module 480x272 RGB Interface 6 O'clock
Detail Information
| Display Size: | 4.3 Inch |
| Resolution: | 480*272 |
| Display Mode: | TN / Transmission / Normally White |
| Viewing Direction: | 6 O'clock |
| Module Size: | 105.5(W)×67.2(H)×3.0(T) Mm |
| Panel Active Area: | 95.04(W)×53.856(H) Mm |
| Driver IC: | OTA5180A |
| Backlight Type: | LED |
| Back Light: | 10 White LED |
| Interface: | 24-Bit Parallel RGB Interface |
| Operating Temperature: | -20~+70℃ |
| Storage Temperature: | -30~+80℃ |
| Number Of Pixels: | 480*272 Dots |
| Display Type: | TFT |
| Panel Type: | TN |
4.3-inch TFT liquid crystal display module 480x272 RGB interface is
a common type of liquid crystal display module. Here is a detailed
introduction to it: Basic parameters
Dimensions: The diagonal length is 4.3 inches. The overall
dimensions are usually around 105.5mm × 67.2mm, and the visible
area is approximately 95.04mm × 53.86mm.
Resolution: 480x272, meaning there are 480 pixels in the horizontal
direction and 272 pixels in the vertical direction, resulting in a
total of 480×272 = 130,560 pixels that can be displayed.
Interface type: Uses RGB interface. Common types include 16-bit,
18-bit or 24-bit RGB interfaces for transmitting image data.
Display mode: Mostly TFT transmissive type, often in white mode.
Some products adopt IPS full-view technology, providing a wider
viewing angle.
Brightness: The brightness varies among different products,
typically ranging from 280cd/m² to 800cd/m². High-brightness
products can meet the display requirements under direct sunlight
exposure outdoors.
Operating temperature: Usually -20℃ to 70℃. Storage temperature:
-30℃ to 80℃. Product features
Color display: Some products can display 16.7 million colors, which
can present rich and realistic image effects and meet general
display requirements.
Touch function: Some modules support resistive or capacitive touch,
enabling human-computer interaction functions and being widely used
in various devices requiring touch operations.
Low power consumption: Adopting a low-power design, the working
voltage is generally 3.3V, suitable for devices powered by
batteries. Application fields
Medical equipment: Such as blood glucose meters and blood pressure
monitors, can clearly display measurement data and operation
interfaces.
Industrial control: Used in industrial control panels and
human-machine interfaces, it can work stably in harsh environments.
Smart home: Such as smart thermostats, coffee machines, washing
machines and other devices' displays, are convenient for users to
operate and view status.
Handheld devices: Such as PDAs and portable navigators, provide
clear display effects and convenient operation experience.
