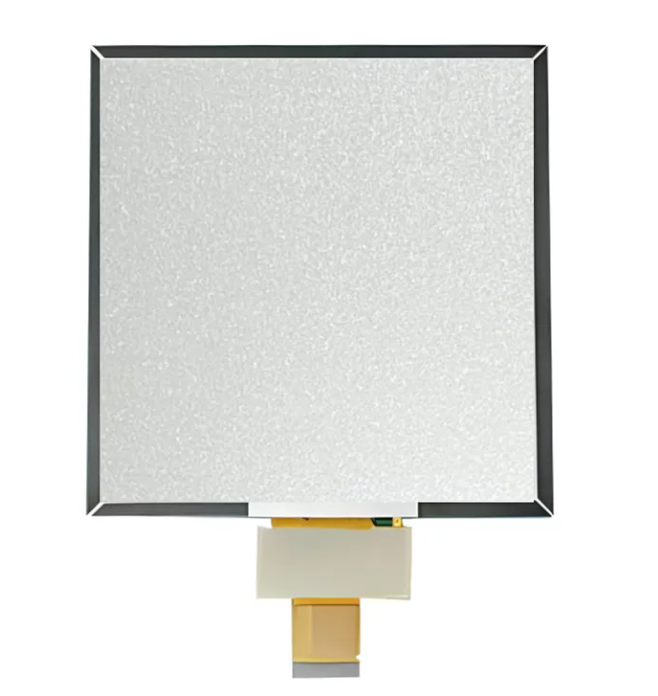

7.6-Inch 800x800 Resolution, MIPI Interface IPS Square TFT LCD
Display
High-performance square TFT LCD display with IPS technology and
MIPI interface, designed for industrial and commercial
applications.
Product Specifications
| Product | 7.6 Inch Square LCD Display |
| Resolution | 800*800 Dots |
| Surface Luminance | 1000 Cd/m² (nits) |
| Interface | MIPI |
| Touch Screen | Customizable |
| Cover Glass Dimension | Customizable |
| Viewing Direction | IPS, All Viewing Angle (85/85/85/85) |
| LCD Controller | ILI9881C |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -25°C to +75°C |
| Brightness | 1000 Nits |
| LED Lifetime | 40,000 Hours |
| Connection | ZIF FPC |
| Compliance | REACH & RoHS Compliant |
Product Drawing
Pin Definition
| Pin No. | Symbol | Description |
|---|
| 1 | LEDA | LED backlight anode |
| 2 | LEDK | LED backlight cathode |
| 3 | LEDK | LED backlight cathode |
| 4 | VCl | Power supply for the analog power |
| 5 | IOVCC | Power supply for the logic power and I/O circuit |
| 6 | RESET | Reset signal (low active) |
| 7 | TE | Tearing effect output |
| 8 | PWM | The PWM frequency output for LCD driver control |
| 9 | GND | Power ground |
| 10 | MIPI_DP0 | MIPI-DSI data lane 0 positive input pin |
| 11 | MIPI_DN0 | MIPI-DSI data lane 0 negative input pin |
| 12 | GND | Power ground |
| 13 | MIPI_DP1 | MIPI-DSI data lane 1 positive input pin |
| 14 | MIPI_DN1 | MIPI-DSI data lane 1 negative input pin |
| 15 | GND | Power ground |
| 16 | MIPI_CLKP | MIPI-DSI data lane positive input pin |
| 17 | MIPI_CLKN | MIPI-DSI data lane negative input pin |
| 18 | GND | Power ground |
| 19 | MIPI_DP2 | MIPI-DSI data lane 2 positive input pin |
| 20 | MIPI_DN2 | MIPI-DSI data lane 2 negative input pin |
| 21 | GND | Power ground |
| 22 | MIPI_DP3 | MIPI-DSI data lane 3 positive input pin |
| 23 | MIPI_DN3 | MIPI-DSI data lane 3 negative input pin |
| 24 | GND | Power ground |
| 25 | TP_INT | INT pin for CTP (NC) |
| 26 | TP_SDA | SDA pin for CTP (NC) |
| 27 | TP_SCL | SCL pin for CTP (NC) |
| 28 | TP_RESET | Reset pin for TP (NC) |
| 29 | TP_VCl | VCl pin for CTP (NC) |
| 30 | TP_IOVCC | IOVCC pin for CTP (NC) |
Product Core Features
This square full-view display module is designed for both
industrial and commercial applications. It features a transmissive
IPS panel with a 1:1 800*800 pixel resolution. The display area
measures 135.36*135.36mm, providing a balanced square shape ideal
for text, charts, and UI layouts without distortion.
The display supports 16.7 million colors with a 4-way full-view
angle of 85° (left/right/top/bottom), ensuring minimal color
deviation when viewed from any angle. The high-brightness model
reaches 1000 cd/m² for clear outdoor visibility, while a standard
400 cd/m² option is also available. The white LED backlight offers
adjustable brightness and extended lifespan.
The MIPI DSI interface (30-pin FPC flexible cable) provides a
high-speed display solution for mobile and embedded devices,
offering lower power consumption and superior anti-interference
compared to parallel RGB interfaces. Compatible with controllers
including RK3568, ESP32-S3, Jetson Nano, and Raspberry Pi.
Capacitive multi-touch options (FT6336U touch IC, I2C
communication) are available.
Electrical specifications include 3.3V operating voltage with a
working temperature range of -20°C to +70°C and storage temperature
of -25°C to +75°C, ensuring reliable performance in industrial and
outdoor environments.
Core Application Scenarios
- Industrial Control & IoT Terminals: HMI panels, intelligent gateways, PLC interfaces, warehouse
scanning terminals. Square format ideal for data sets, status
icons, and operation buttons.
- Portable Medical Equipment: Handheld ultrasound, ECG monitors, blood analyzers. IPS viewing
angles facilitate data reading from different positions.
- Vehicle & Navigation Systems: Passenger information screens, instrument panels, monitoring
displays. Wide temperature range withstands vehicle environmental
conditions.
- Smart Retail & Home Automation: Self-checkout displays, control panels, smart home interfaces.
Square layout optimizes information organization.
- Embedded Development: Raspberry Pi, Jetson Nano displays, robotics feedback screens,
simulation instrument panels with comprehensive open-source
drivers.
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is
65x30x2.8mm. Is this possible?
Yes, we can accommodate custom specifications. Please provide your
detailed specifications or drawing. If you don't have
specifications, we can recommend suitable options based on your
samples or requirements.
This LCD is what we want, but it's too large. Do you have smaller
sizes? Can the display content be modified?
For segment-type LCD modules requiring size or content
modifications, new LCD glass modules with custom tooling are
required.
This LCD display is HTN type, but I want STN type. Can you make
this change?
Yes, we can modify the display type according to your requirements.
Can you customize a new LCD module?
Yes, we offer full customization services. Please provide your
drawing or specifications including outline size, glass thickness,
polarizer type, display type, connector mode, temperature ranges,
supply voltage, viewing direction, and drive conditions.
What is the lead time for tooling?
Typically 15-25 days after drawing confirmation and tooling
payment. Exact timing will be confirmed upon drawing approval.
Can you send samples for evaluation?
Yes, sample orders are available for product evaluation.
What is the production lead time?
Standard products in stock ship within one day after payment. Mass
production for custom orders typically requires 15-30 days, with
earlier completion communicated in advance.
